ESP8266-01 Bread Board Adapter

After a lengthy pause I have started playing with the ESP8266 modules again and I was getting annoyed by all the wires when using them on a bread board. So, like others before me, I built a small bread board adapter.

ESP8266BreadbaordAdapter_03_1600

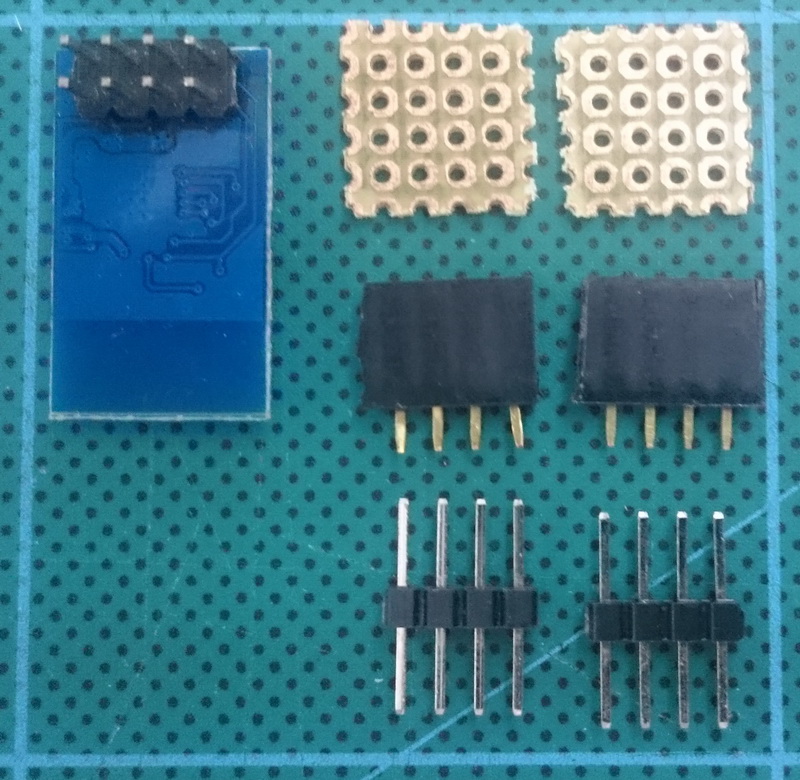

The adapter is made from a couple of pieces of proto-board, 2 1 x 4 pins, 2 1 x 4 female header and some thin wire.
I cut the female headers from larger pieces.
The wire is single core wrapping wire which has the coating removed.
ESP8266_ADAPTER_01_800

The 2 pieces of proto board are placed together face out (the side with the copper discs) this allows you to solder to both sides. However, this means there is no connection from one side to the other and this is what the wire is used for.

Solder the female headers

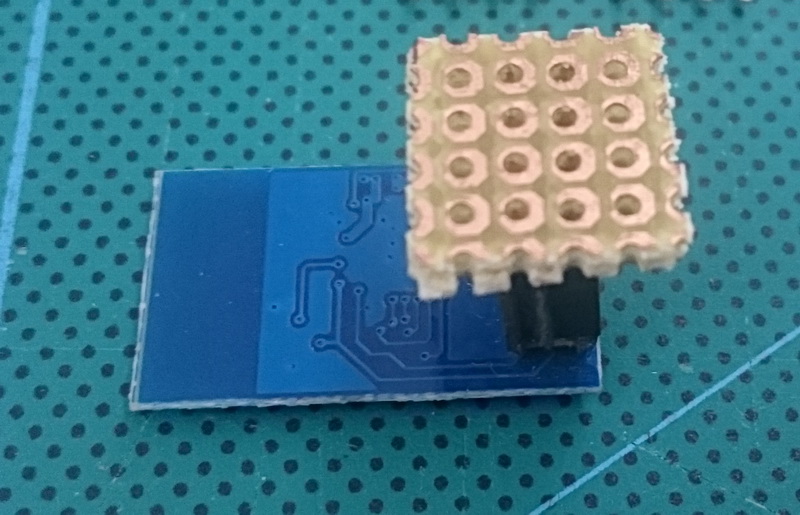

Attached the ESP8266 module to the female headers, place the proto boards over the pins on the header and solder in to place.
Next add small lengths of wire. The wire is used to make a connection to the larger pins.
ESP8266_ADAPTER_11_800

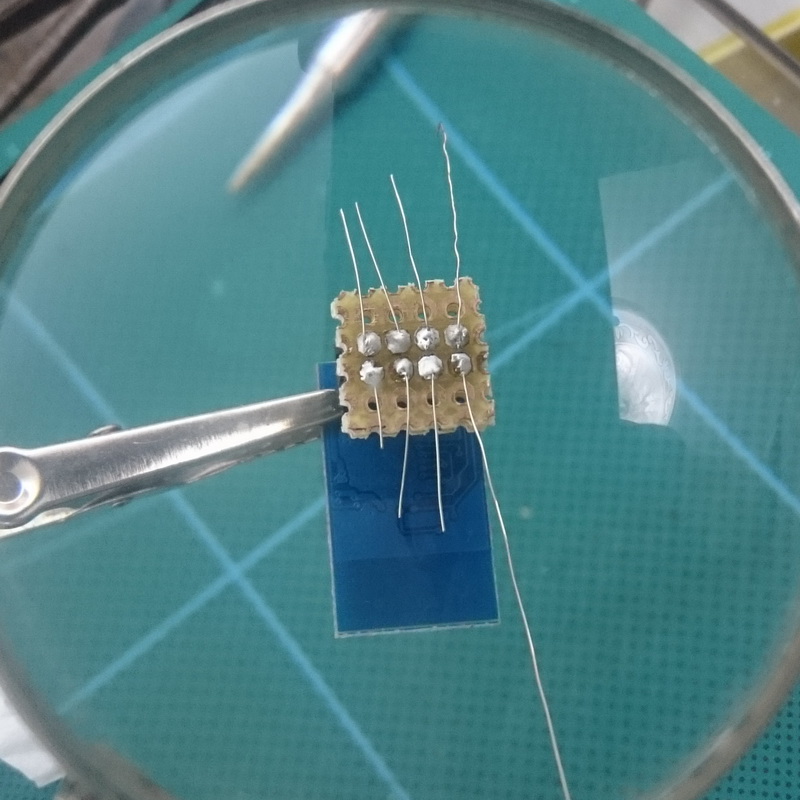

ESP8266_ADAPTER_04_800

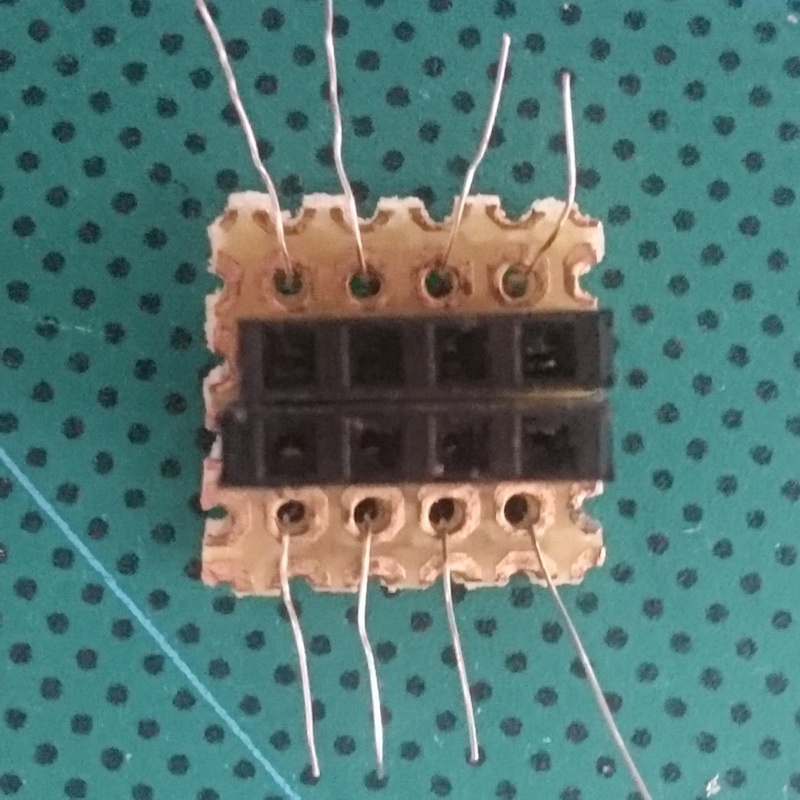

Feed the wires through the holes
ESP8266_ADAPTER_05_800

Solder the pins

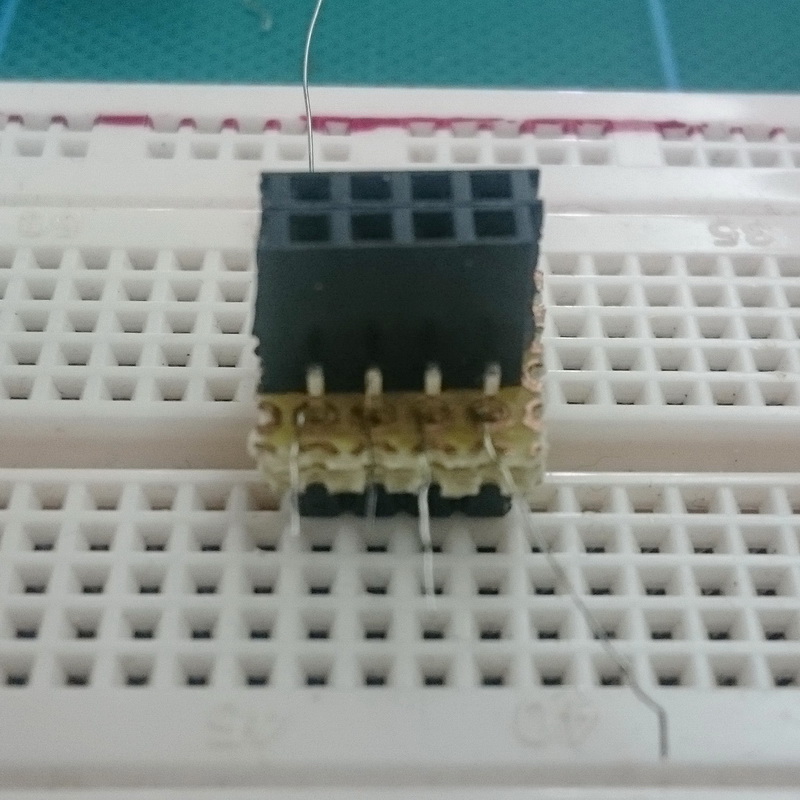

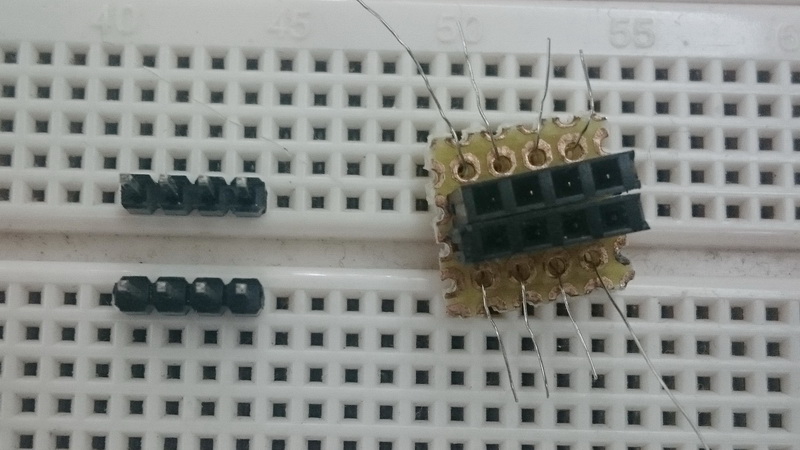

Place the pins in a bread board then place the board on top.
ESP8266_ADAPTER_06_800

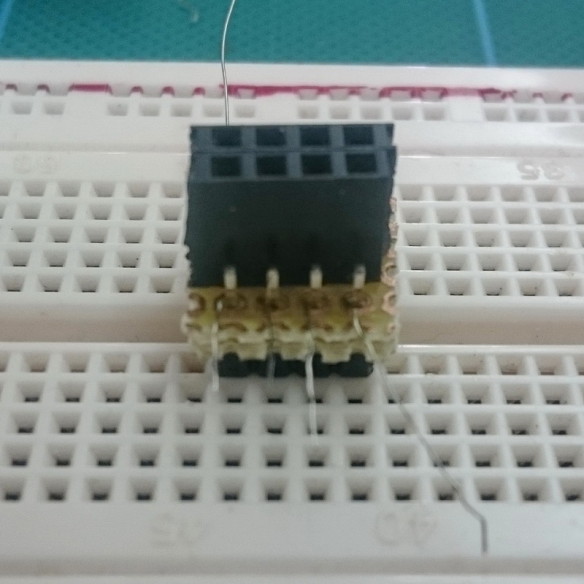

ESP8266_ADAPTER_07_800

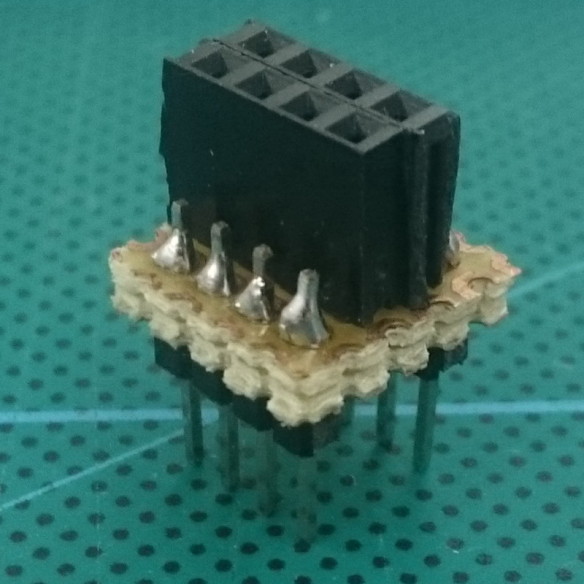

Solder the pins in place and trim the excess wire
ESP8266_ADAPTER_09_800

ESP8266BreadbaordAdapter_04_1600

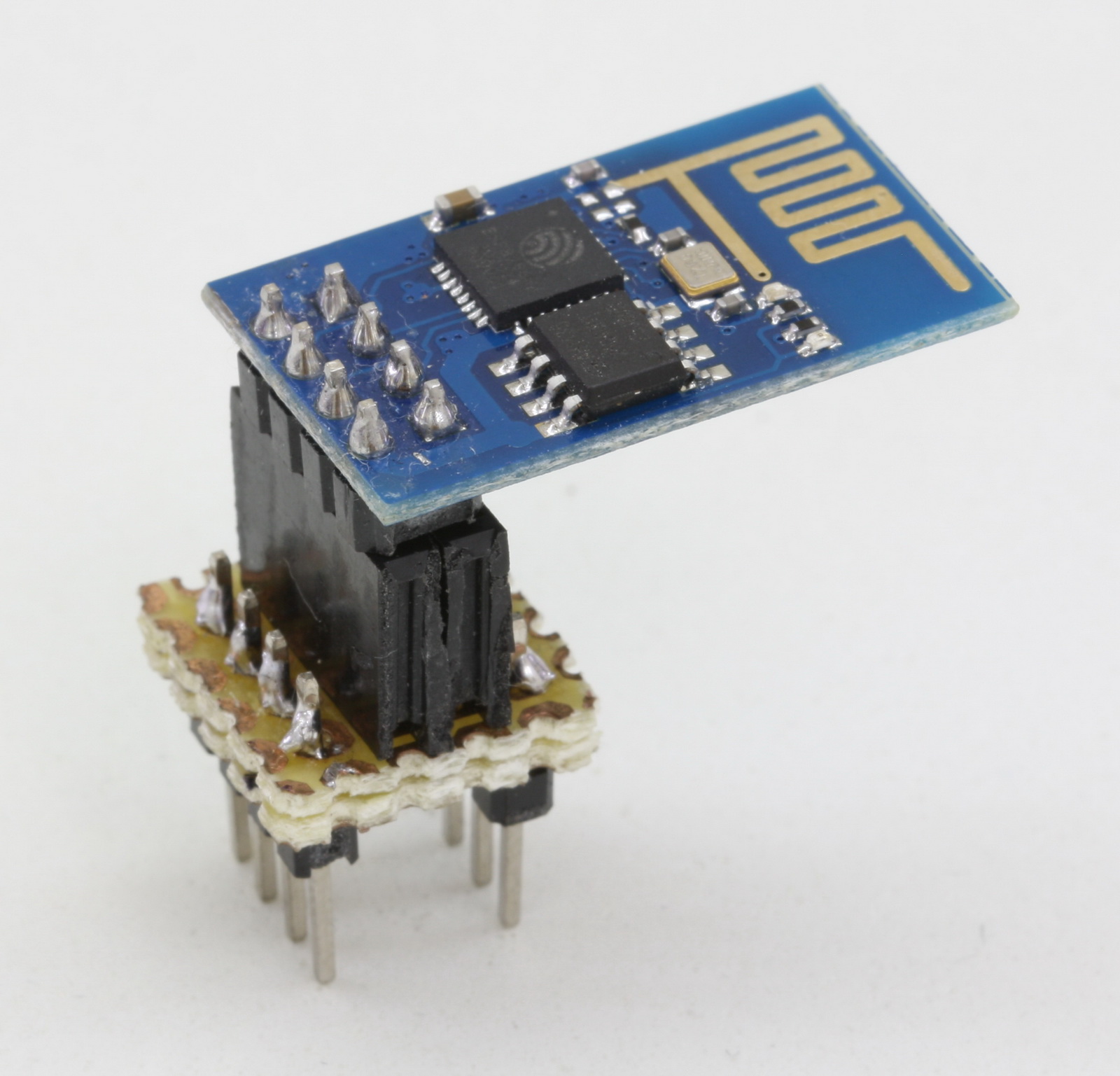

Not the best looking thing in the world but it works well.
